Technical table

name	value
Ball diameter (mm)	10
Centre styli	false
Effective working length (mm)	75
Holder material	Stainless steel
Overall length (mm)	75
Stem diameter (mm)	4
Stem material	Carbon fibre
Thread	M3
Tip material	Ruby

Description

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for applications where weight is critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Equivalent to

Equivalent to Q-Mark part number: TM3-10080-G

Technical documentation

Technical document 1 (DOC)

Download

Related products

$331.32

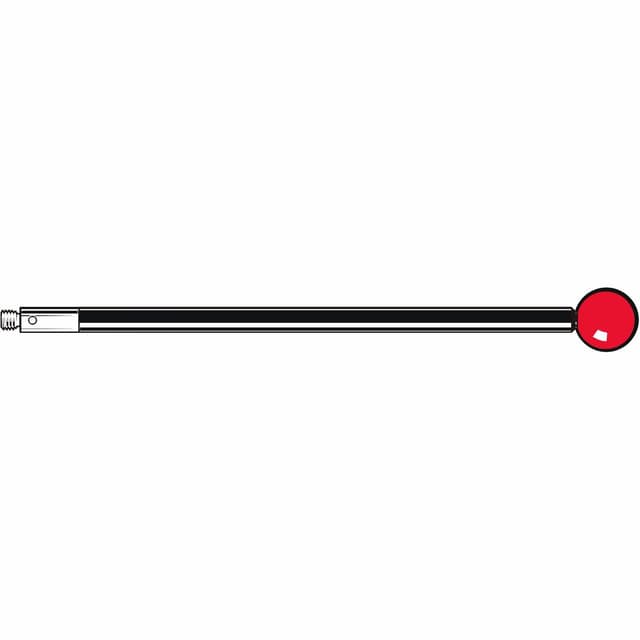

M3 Ø10 mm ruby ball, carbon fibre stem, L 100 mm
