Technical table

name	value
Clamp length (mm)	36.2
Clamp type	Tension
Clamp width (mm)	7.6
Height (mm)	30
Material	Aluminium
Measurement system	Metric
Thread	M8
Tip width	3.9

Description

This tension clamp is used for the quick and easy clamping of parts onto CMM and Equator™ gauging systems.

Technical documentation

Technical document 1 (DOC)

Download

Related products

$37.17

57.5 mm tension clamp with 68.1 mm post and M6 thread

Part number: R-CT-64-70-6

$34.00

36.2 mm tension clamp with 68.1 mm post and M8 thread

Part number: R-CT-40-70-8

$37.59

36.2 mm tension clamp with 68.1 mm post and M6 thread

Part number: R-CT-40-70-6

$32.03

36.2 mm tension clamp with 30.0 mm post and M6 thread

Part number: R-CT-40-30-6

$79.00

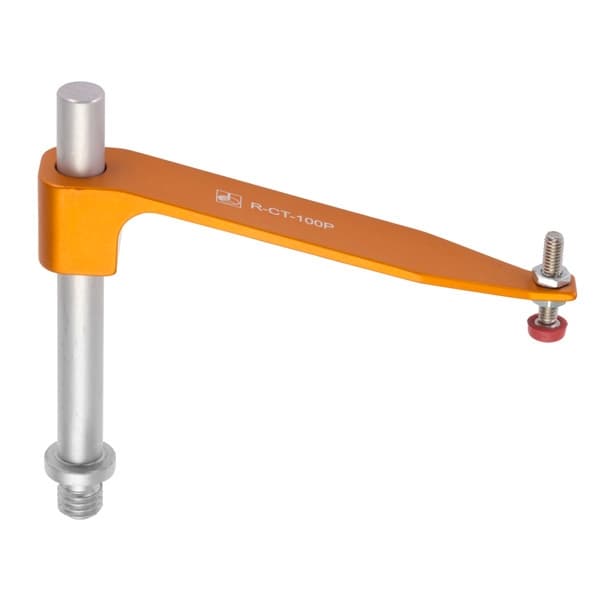

92.0 mm tension clamp with 82.8 mm post and adjustable plunger tip and M8 thread
