Technical table

name	value
Base length (mm)	127
Height (mm)	150
Material	Aluminium
Measurement system	Metric
Thread	M6
Threaded rows	1
Tower width (mm)	25

Description

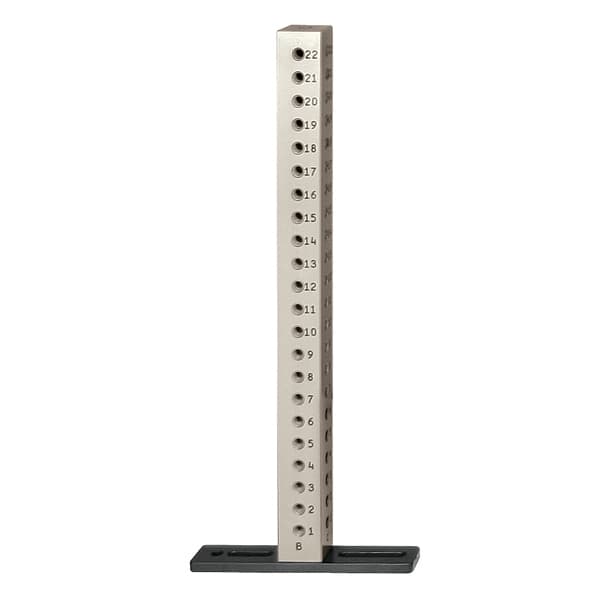

This tower is used to fixture large workpieces or to hold a workpiece vertically. It has M6 threaded holes spaced at 12.5 mm intervals and is recommended for use on CMM and Equator™ gauging systems.

Note: Included: socket head cap screws.
